Once the motor was mounted I needed to find a place for the battery to sit. As I mentioned in the mounting the motor section, the base of the motor was facing the rear of the mower and would provide a solid mounting surface for the battery mount. To get the proper weight distribution I wanted to mount the battery as close as I could to the back wheels. This would allow the handle bars to serve as a lever and allow the mower to easily pivot when on its back wheels.

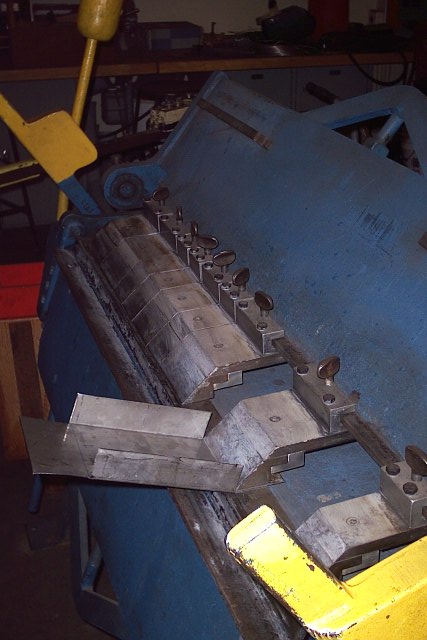

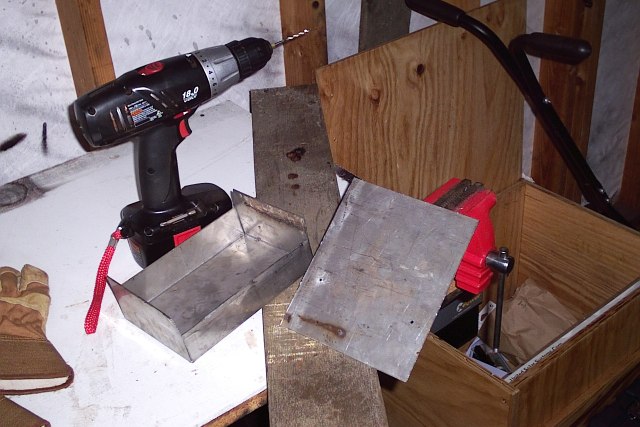

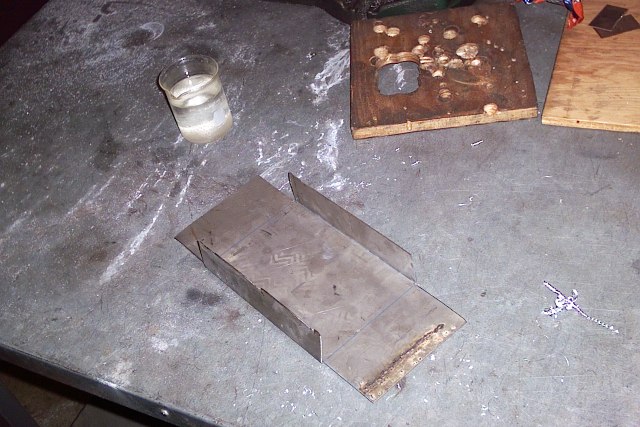

Using a piece of stainless steel I purchased from a local scrap yard I fabricated the battery mount. I started by placing the battery in the center of the square piece of stainless steel. Then I marked the outline of the battery on to the steel. Next I cut the corners to allow the sides that extend beyond the battery to be folded up. After folding up all four sides I welded them together for support. The battery fits tightly into the mount so no excess strapping is needed.

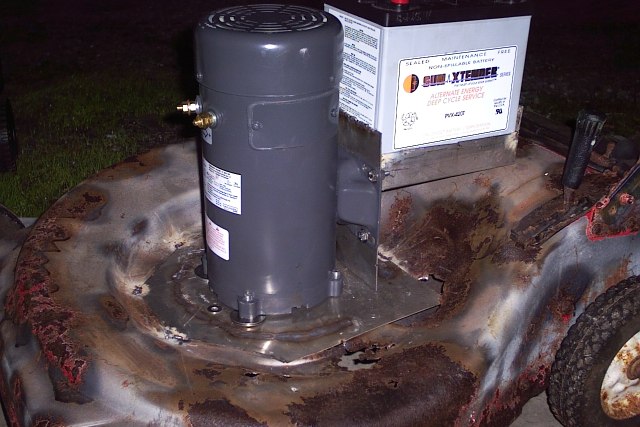

I then added a small piece of steel to the front side of the battery mount at a ninety degree angle. This piece extended from the battery mount to the deck of the mower to help support the battery when bolted to the motor base (see bottom image). The other end of the battery mount rests on the raised back of the mower.
